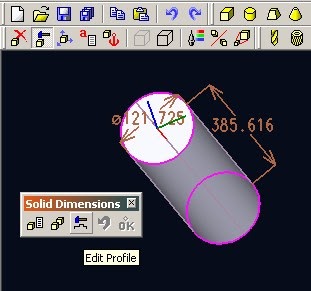

In this case, editing of one object causes all its linked copies to be updated. If the link between a part and assembly is defined, any changes made to the part file are reflected in the assembly file and vice-versa. VariCAD also provides tools for assembly support. Boolean trees are very easy to edit.ģD Tools - Assemblies, Groups, Parts etc. Predefined operations like hole drilling, face milling, groove milling and edge beveling/filleting are also available. Boolean operations have options for automatic trimming, or automatic removal of subtracted volumes. Solids can be added or subtracted, thus forming Boolean trees representing real mechanical parts. More complex tools include rotation blending between two profiles, lofting between a circle and rectangle, and creation of helical surfaces. Solids can also easily be created by profile rotation, extrusion, or lofting. VariCAD provides a library of basic 3D solids (prism, cylinder, cone, etc.), which are easily modified by editing the original profile or parameters. Models created in 3D are easily converted into conventional 2D documentation. The 3D approach is usually more intuitive than 2D drafting. Designing in 3D is generally more "natural," in that it closely represents actual parts and assemblies. You can start by creating a 3D model and then use it to automatically create drawings files, or you can draw only in 2D. An intelligent cursor, numerous detection and selection modes, 2D construction lines, and the orthogonal grid are just some of the tools that make working with VariCAD so easy. All commands were created with a focus on ease of use. We carefully tailored and tuned the GUI to reflect the thought process of a designer, so that ideas can be captured and communicated with a minimal number of steps. VariCAD's Graphical User Interface (GUI) has been designed to allow quick and intuitive 3D/2D orientation. This online demostration shows you how the VariCAD interface looks and how easy it is to design with the program. Watch how to create your 3D models or 2D drawings with VariCAD. VariCAD delivers an excellent performance-to-price ratio, making it one of the smartest choices on the market today.
The software is sold as one "fully loaded" package, with all features and functions, for one very affordable price. VariCAD's high performance, powerful features, and simple and quick user interface make VariCAD the best value in the CAD market. The comprehensive CAD software enables designers to quickly create, evaluate, and modify their models.
In addition to powerful tools for 3D modeling and 2D drafting and dimensioning, the CAD system provides libraries of standard mechanical parts (ANSI, DIN), calculations of standard mechanical components, and tools for working with bills of materials (BOM) and blocks. VariCAD is 3D/2D CAD system primarily intended for mechanical engineering design.
